TCS Off Switch Inspection

  1. Remove the TCS OFF switch. (See TCS OFF SWITCH REMOVAL/INSTALLATION .)
  2. Verify that the resistance between the TCS OFF switch terminals B and C is as indicated in the figure.
    • If not as indicated in the table, replace the TCS OFF switch.

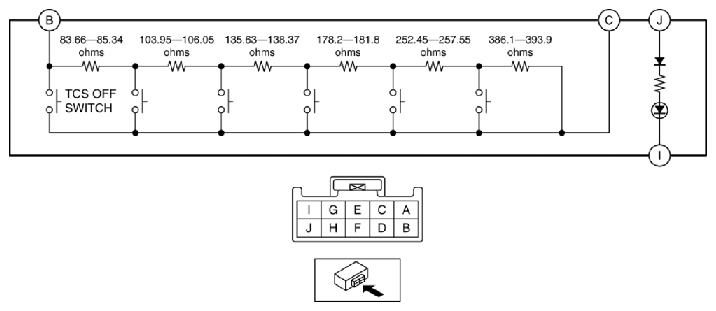

    Fig 1: TCS OFF Switch Circuit Diagram
    G10909743Courtesy of MAZDA MOTORS CORP.
    TCS OFF SWITCH SPECIFICATIONS

    Terminal Test condition Resistance (ohms)
    B-C Switch pressed 0
    Switch released 1139.99-1163.01
  3. Apply battery voltage to TCS OFF switch terminal J, and connect terminal I to ground.
  4. Verify that the LED illuminates.
    • If there is any malfunction, replace the TCS OFF switch.
