Symptom Troubleshooting - Engine
>>
Foreword
>>
Troubleshooting Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Troubleshooting Procedure

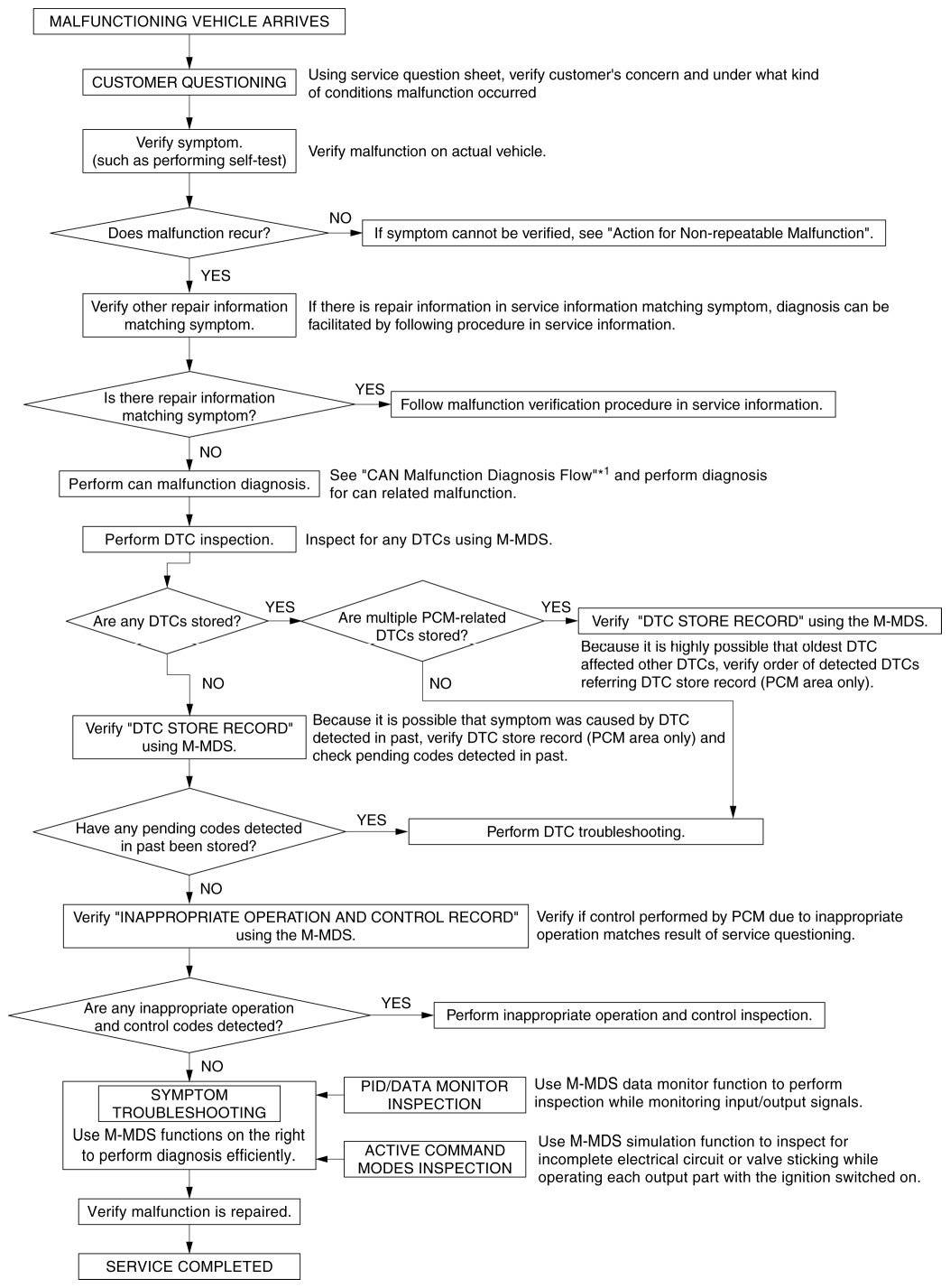

Fig 1: Troubleshooting Procedure Chart
Courtesy of MAZDA MOTORS CORP.
