Liftgate Latch Switch Inspection

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
4. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
6. Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

Fig 1: Liftgate Latch Switch Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.

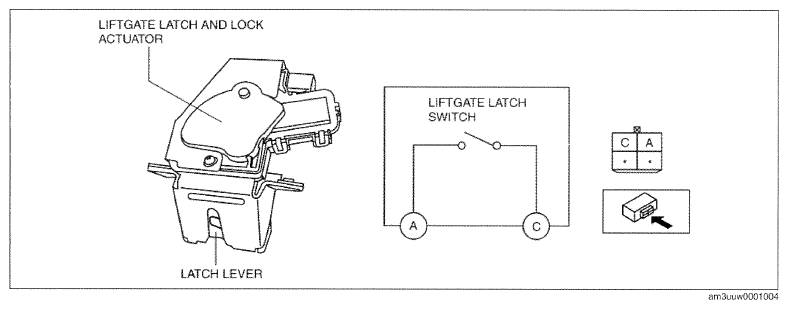

Fig 2: Liftgate Latch Switch Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the liftgate latch and lock actuator.
  NOTE:
  - When inspecting the latch condition of the liftgate latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

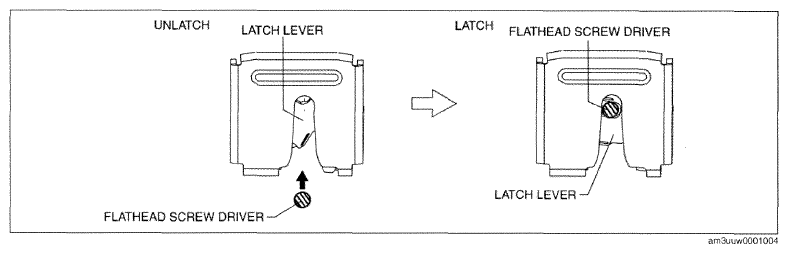

  Fig 3: Pressing Latch Lever Using Flathead Screwdriver
  Courtesy of MAZDA MOTORS CORP.
