Selector Lever Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Perform the following procedure to remove the selector lever knob.
    NOTE:
    • If the servicing is difficult, release the shift lock manually and shift the selector lever to the N position.

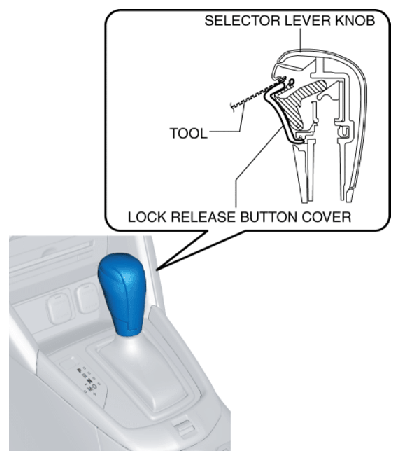

    1. Insert the tool (width: 4 mm {0.2 in} or less  , thickness: 1 mm {0.04 in} or less)  as shown in the figure.
      Fig 1: Removing Selector Lever Knob
      G10910013Courtesy of MAZDA MOTORS CORP.

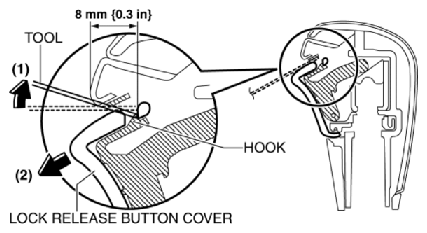

    2. Move the tool in the direction of arrow (1) in the figure and detach the hook. Move the lock release button cover in the direction of arrow (2) in the figure and remove it.
      Fig 2: Moving Lock Release Button Cover
      G10910014Courtesy of MAZDA MOTORS CORP.
    3. Remove the spring.
      Fig 3: Removing Spring
      G10910015Courtesy of MAZDA MOTORS CORP.

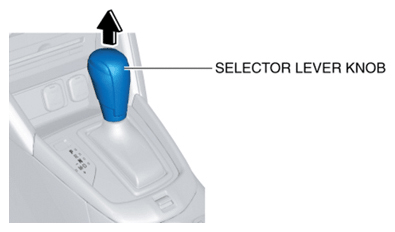

    4. Remove the selector lever knob.
    Fig 4: Removing Selector Lever Knob
    G10910016Courtesy of MAZDA MOTORS CORP.
  3. Remove the following parts:
    1. Center console tray (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
    2. Shift bezel (See SHIFT BEZEL REMOVAL/INSTALLATION .)
    3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    7. CD player (See CD PLAYER REMOVAL .)
    8. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    9. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    10. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)

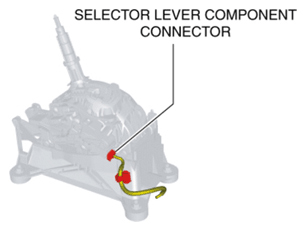

  4. Disconnect the selector lever component connector.
    Fig 5: Disconnecting Selector Lever Component Connector
    G10910017Courtesy of MAZDA MOTORS CORP.
  5. Remove the selector cable (selector lever side). (See SELECTOR CABLE REMOVAL/INSTALLATION .)

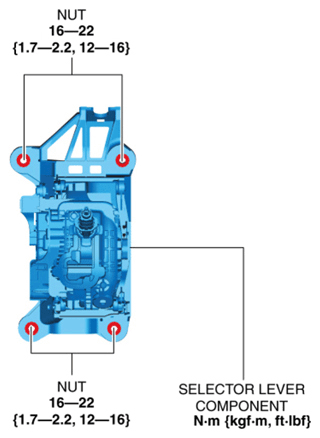

  6. Remove the nuts from the selector lever component.
    Fig 6: Removing Nuts From Selector Lever Component
    G10910018Courtesy of MAZDA MOTORS CORP.
  7. Remove the selector lever component.
  8. Install the selector lever component.
  9. Install the nuts from the selector lever component.
    Fig 7: Removing Nuts From Selector Lever Component
    G10910019Courtesy of MAZDA MOTORS CORP.
  10. Install the selector cable (selector lever side). (See SELECTOR CABLE REMOVAL/INSTALLATION .)
  11. Connect the selector lever component connector.
    Fig 8: Connecting Selector Lever Component Connector
    G10910020Courtesy of MAZDA MOTORS CORP.
  12. Install the following parts:
    1. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    2. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    3. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    4. CD player (See CD PLAYER INSTALLATION .)
    5. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    6. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    8. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    9. Shift bezel (See SHIFT BEZEL REMOVAL/INSTALLATION .)
    10. Center console tray (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
  13. Perform the following procedure to install the selector lever knob.

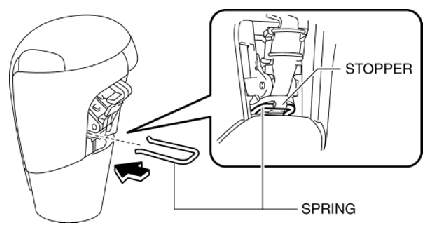

    1. Install the spring to the selector lever knob.
      CAUTION:
      • Install the spring so that it is stopped by the stopper.
      Fig 9: Installing Spring To Selector Lever Knob
      G10910021Courtesy of MAZDA MOTORS CORP.

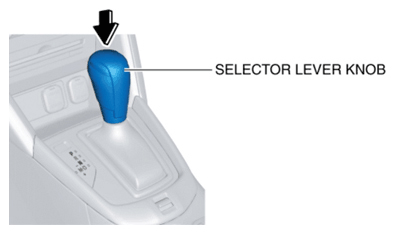

    2. Install the selector lever knob to the selector lever component.
      Fig 10: Installing Selector Lever Knob To Selector Lever Component
      G10910022Courtesy of MAZDA MOTORS CORP.

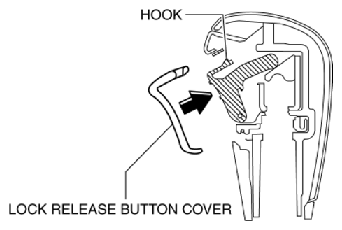

    3. Install the lock release button cover so that it engages with the hook of the selector lever knob.
      Fig 11: Installing Lock Release Button Cover
      G10910023Courtesy of MAZDA MOTORS CORP.
    4. Pull the select lever knob upward and verify that it is securely installed.
  14. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
