Rear Power Window Motor Inspection
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the power window subswitch. (Refer to POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
- Remove the rear door trim. (Refer to REAR DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the front power window motor connector.
- Apply battery positive voltage and connect the ground to front power window motor terminals E and F, and then inspect the front power window motor operation.

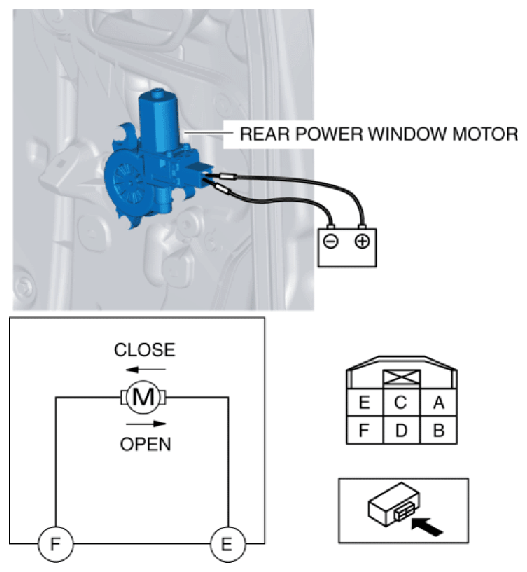

B+ Terminal Ground Terminal Operation E F Close F E Open Fig 1: Applying Battery Positive Voltage And Connecting Ground To Front Power Window Motor Terminals E And FCourtesy of MAZDA MOTORS CORP.
- If the rear power window motor does not operate as indicated in the table, replace it. (Refer to REAR POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
