Rear Body Control Module (RBCM) Bracket Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    5. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    6. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    7. Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    8. Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    9. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    10. Rear body control module (RBCM) (See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION .)
  3. Remove the bolts.
  4. Remove the screw.
  5. Remove the rear body control module (RBCM) bracket.
  6. Install in the reverse order of removal.

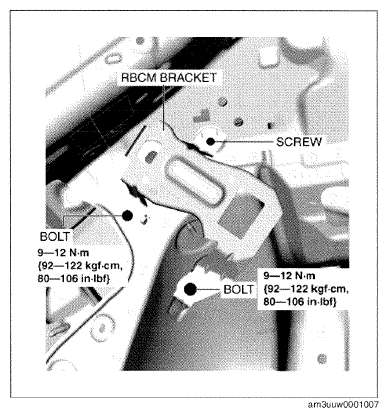

    Fig 1: RBCM Bracket And Bolt With Torque Specifications
    G09784486Courtesy of MAZDA MOTORS CORP.
