Selector Cable Adjustment

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
  3. Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION .)
  4. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
  5. Remove the rear console bracket. (See REAR CONSOLE DISASSEMBLY/ASSEMBLY .)
  6. Shift the selector lever to the P position.
  7. Pull out the safety lock in the direction of the arrow (1) shown in the figure, pull out the lock piece in the direction of the arrow (2) shown in the figure, and release the lock. (See SELECTOR CABLE (SELECTOR LEVER SIDE) INSTALLATION NOTE .)

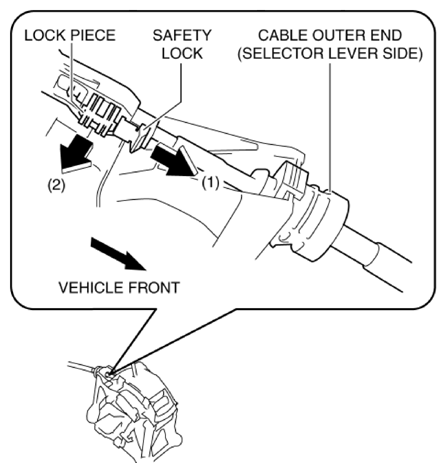

    Fig 1: Pulling Out Safety Lock
    G10937329Courtesy of MAZDA MOTORS CORP.
  8. Set the manual shaft to the P position.

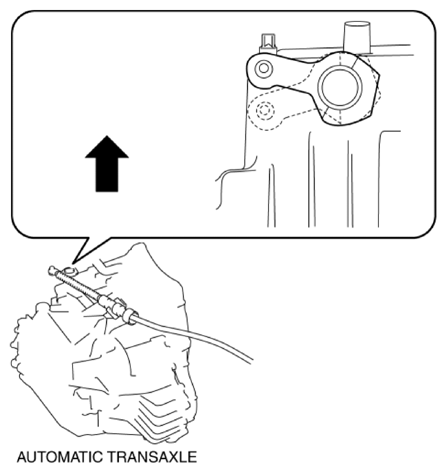

    Fig 2: Setting Manual Shaft To P Position
    G10937330Courtesy of MAZDA MOTORS CORP.
  9. Press in the lock piece in the direction of the arrow (1) shown in the figure, press in the safety lock in the direction of the arrow (2) shown in the figure, and lock it.

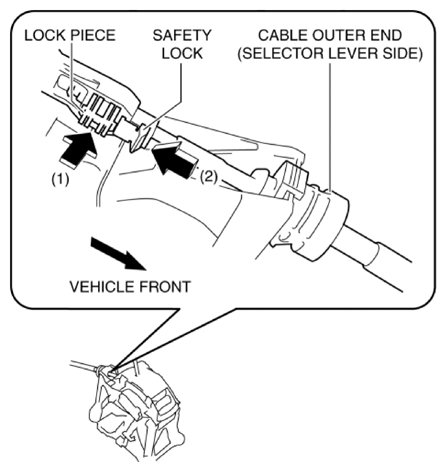

    Fig 3: Pressing In Lock Piece
    G10937331Courtesy of MAZDA MOTORS CORP.
  10. Perform the procedure in the reverse order of Step  1 to  5 to install the removed part.
  11. Perform the selector lever inspection. (See SELECTOR LEVER INSPECTION .)
