Power Window System Troubleshooting Questionnaire [Power Window System]

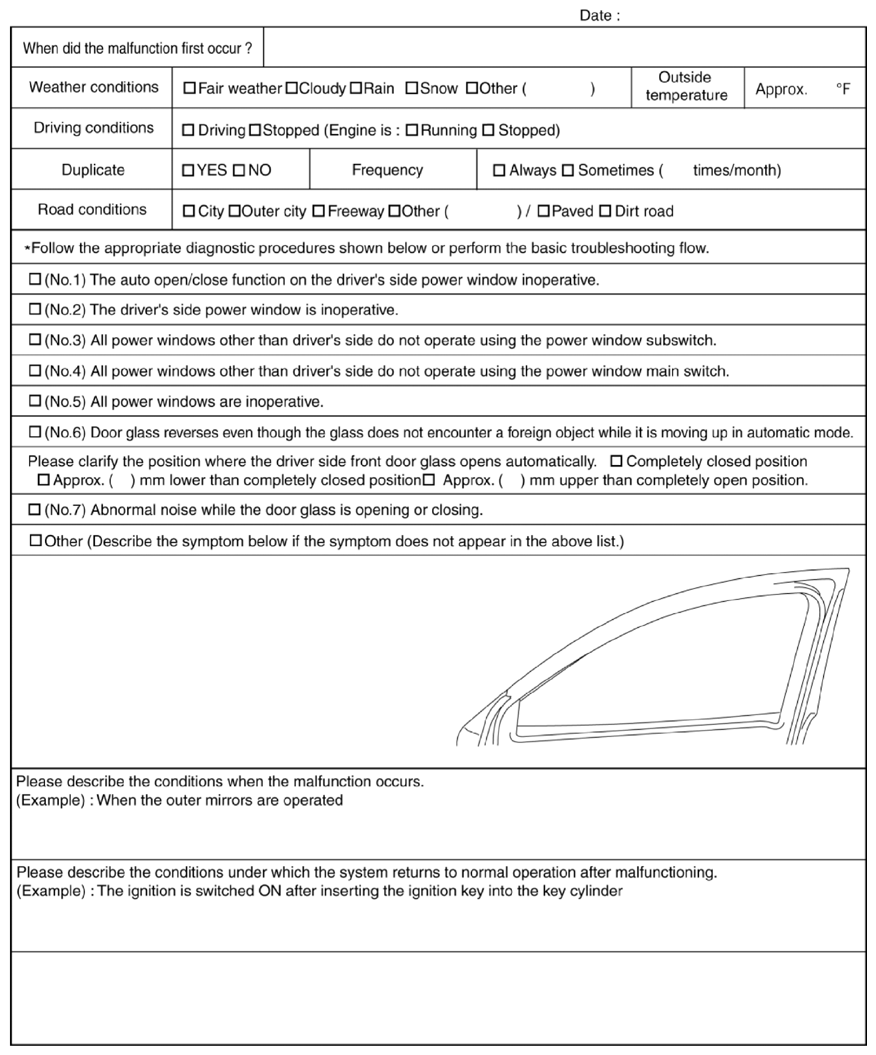

Fig 1: Power Window System Troubleshooting Questionnaire Sheet
G10938246Courtesy of MAZDA MOTORS CORP.
