Commander Switch Removal/Installation
CAUTION:
- The connectivity master unit (CMU) determines the presence/non-presence of a commander switch and records it based on the communication status when the ignition is switched ON (engine off or on) or to the ACC position for the first time after the negative battery terminal is connected.
- If the negative battery terminal is connected while the connectivity master unit (CMU) has recorded the non-presence of the commander switch and thereafter a commander switch is installed, the installed commander switch will not operate.
- When installing or removing the commander switch, always disconnect the negative battery terminal, and after the servicing is completed, switch the ignition to ACC or ON (engine off or on) to allow the connectivity master unit (CMU) to record the presence/non-presence of the commander switch.
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
- Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
- Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
- Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)

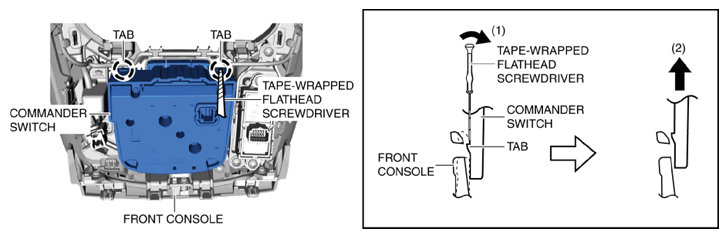

- While pressing tab of the commander switch in the direction of the arrows (1) shown in the figure using a tape-wrapped flathead screwdriver, pull the commander switch in the direction of the arrow (2) shown in the figure to detach tabs of the commander switch from the front console.

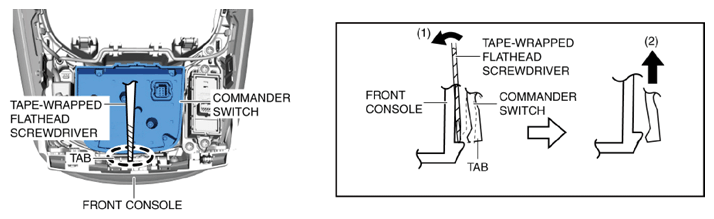

- While pressing tabs of the commander switch in the direction of the arrows (1) shown in the figure using a tape-wrapped flathead screwdriver, pull the commander switch in the direction of the arrow (2) shown in the figure to detach tabs of the commander switch from the front console.

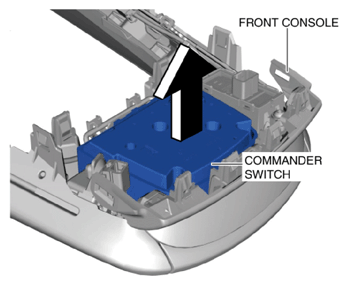

- Remove the commander switch in the direction of arrow shown in the figure.
- Install in the reverse order of removal.
