| Description |
Auto leveling control module low power supply voltage input |
| Detection condition |
- Auto leveling control module power supply circuit voltage of 9.0 V or less
is detected for 5 s or more
with the ignition switched ON (engine off or on).
|
| Fail-safe |
- The headlight leveling actuator is stopped at the position when the malfunction is determined.
|
| Possible cause |
- DTCs are stored in the PCM.
- Battery malfunction
- Generator malfunction
- Auto leveling control module connector or terminal malfunction
- Auto leveling control module power supply circuit malfunction

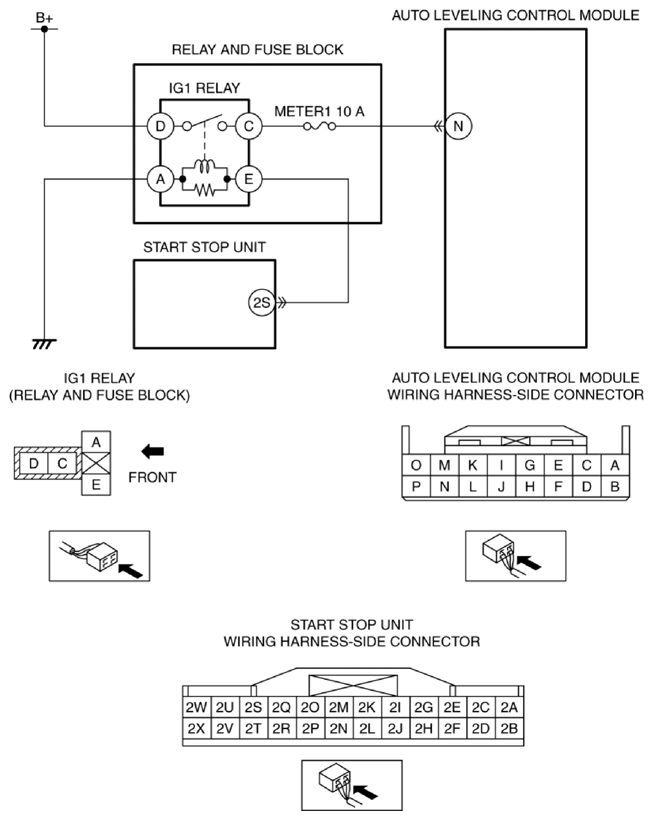

- Short to ground in wiring harness between METER1 10 A fuse and auto leveling control module terminal N
- METER1 10 A fuse malfunction
- Open circuit in wiring harness between IG1 relay terminal C and auto leveling control module terminal N
- Auto leveling control module malfunction
|
|
|
