Keyless Beeper Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the wiper arm and blade. (Refer to WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  3. Remove the cowl grille. (Refer to COWL GRILLE REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

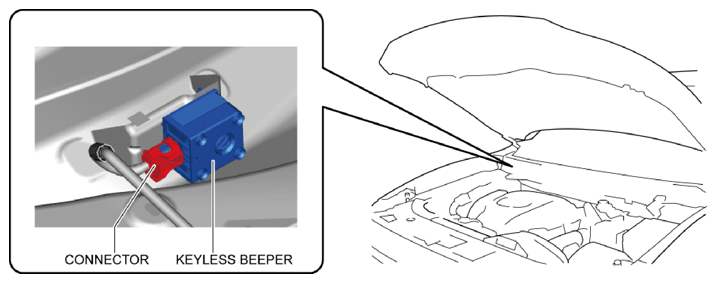

    Fig 1: Identifying Keyless Beeper And Connector
    G10949891Courtesy of MAZDA MOTORS CORP.
  5. Pull the keyless beeper in the direction of the arrow (2) shown in the figure while pressing the keyless beeper tabs in the direction of the arrow (1) shown in the figure, detach the keyless beeper tabs and bracket, and then remove the keyless beeper from the bracket.
    Fig 2: Removing Keyless Beeper From Bracket
    G10949892Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
