| Possible Causes |
- Power window motor malfunction

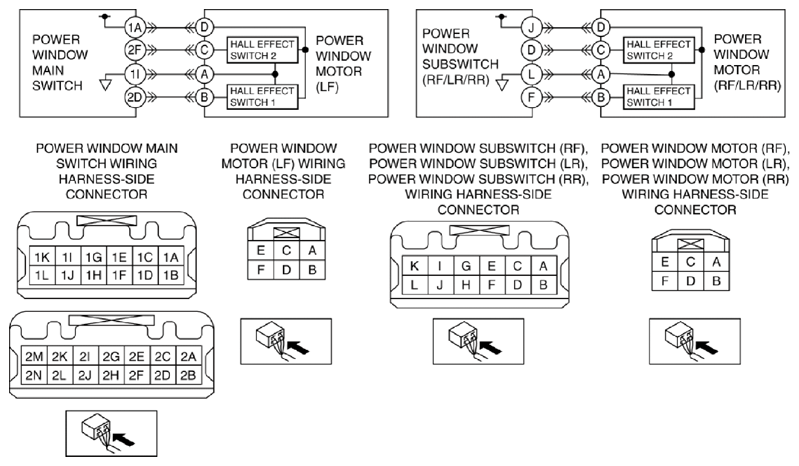

- Open circuit in wiring harness between the following terminals:
Driver-side:
- Power window main switch terminal 2D and power window motor terminal B
- Power window main switch terminal 1A and power window motor terminal D
- Power window main switch terminal 1I and power window motor terminal A
- Power window main switch terminal 2F and power window motor terminal C
Except for driver-side:
- Power window subswitch terminal F and power window motor terminal B
- Power window subswitch terminal J and power window motor terminal D
- Power window subswitch terminal L and power window motor terminal A
- Power window subswitch terminal D and power window motor terminal C
- Short to power supply in wiring harness between the following terminals:
Driver-side:
- Power window main switch terminal 2D and power window motor terminal B
- Power window main switch terminal 1A and power window motor terminal D
- Power window main switch terminal 1I and power window motor terminal A
- Power window main switch terminal 2F and power window motor terminal C
Except for driver-side:
- Power window subswitch terminal F and power window motor terminal B
- Power window subswitch terminal J and power window motor terminal D
- Power window subswitch terminal L and power window motor terminal A
- Power window subswitch terminal D and power window motor terminal C
- Short to ground in wiring harness between the following terminals:
Driver-side:
- Power window main switch terminal 2D and power window motor terminal B
- Power window main switch terminal 1A and power window motor terminal D
- Power window main switch terminal 1I and power window motor terminal A
- Power window main switch terminal 2F and power window motor terminal C
Except for driver-side:
- Power window subswitch terminal F and power window motor terminal B
- Power window subswitch terminal J and power window motor terminal D
- Power window subswitch terminal L and power window motor terminal A
- Power window subswitch terminal D and power window motor terminal C
- Power window main switch malfunction
- Power window subswitch malfunction
NOTE:
- The automatic function and the IG OFF timer function do not operate while the power window switch is in fail-safe mode. The fail-safe operates when sensor 1, and/or sensor 2, and/or the sensor power supply malfunctions.
- Sensor 1 and/or 2 malfunction
- When the door glass is moving up and down, the power window switch cannot sense a pulse signal from sensor 1 during the time it senses 5 pulses (2.5 cycles) from sensor 2.
- When the door glass is moving up and down, the switch cannot sense a pulse signal from sensor 2 during the time it senses 5 pulses (2.5 cycles) from sensor 1.
- There are three abnormal pulses in a pulse signal while the door glass is moving up or down.
- There are 20 cycle pulses from a closed position while the door glass is moving up.
- There is no pulse signal for 1 s after the door glass is moved down.
|
