| DTC P007D-00: |
Boost air temperature sensor circuit high input |
| DETECTION CONDITION |
- The PCM monitors the boost air temperature sensor signal. If the PCM detects that the boost air temperature sensor voltage at the PCM terminal 2U is above 4.96 V
for 5 s
, the PCM determines that the boost air temperature sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- Boost pressure sensor/boost air temperature sensor connector or terminals malfunction
- PCM connector or terminals malfunction
- Boost air temperature sensor malfunction

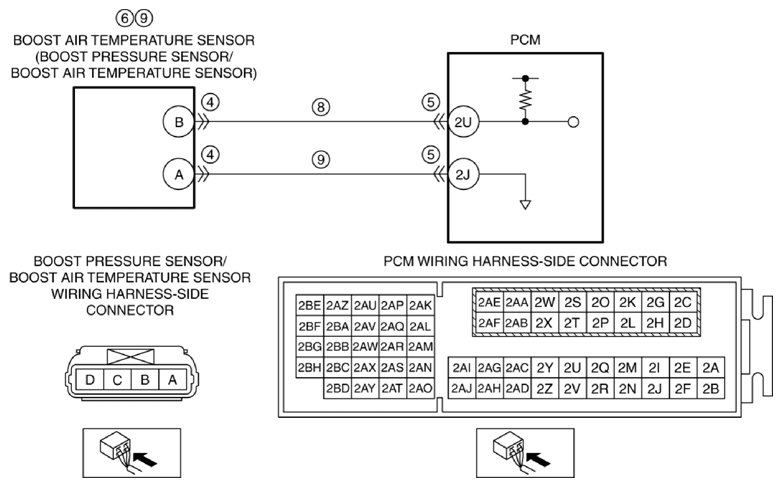

- Short to power supply in wiring harness between boost pressure sensor/boost air temperature sensor terminal B and PCM terminal 2U
- Open circuit in wiring harness between the following terminals:
- Boost pressure sensor/boost air temperature sensor terminal B-PCM terminal 2U
- Boost pressure sensor/boost air temperature sensor terminal A-PCM terminal 2J
- PCM malfunction
|
|
|
