| DTC P0237-00: |
Boost pressure sensor circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the boost pressure sensor. If the input voltage at the PCM terminal 2AS is below 0.28 V
for 5 s
, the PCM determines that the boost pressure sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Stop the supercharging pressure control. (fully open the wastegate valve)
|
| POSSIBLE CAUSE |

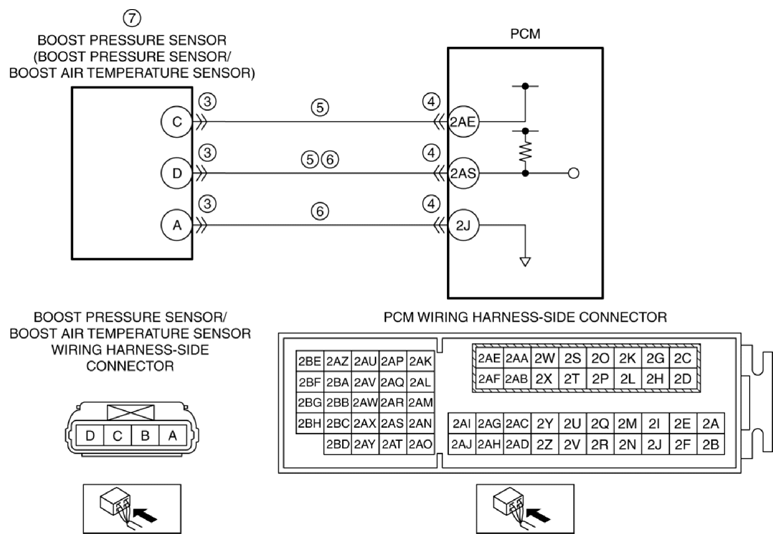

- Boost pressure sensor/boost air temperature sensor connector or terminals malfunction
- PCM connector or terminals malfunction
- Short to ground in wiring harness between the following terminals:
- Boost pressure sensor/boost air temperature sensor terminal C-PCM terminal 2AE
- Boost pressure sensor/boost air temperature sensor terminal D-PCM terminal 2AS
- Boost pressure sensor signal circuit and ground circuit are shorted to each other
- Boost pressure sensor malfunction
- PCM malfunction
|
|
|
