General Information: Towing: Notes

Proper lifting and towing are necessary to prevent damage to the vehicle. Particularly when towing an AWD vehicle, where all the wheels are connected to the drive train, proper transporting of the vehicle is absolutely essential to avoid damaging the drive system. Government and local laws must be followed.

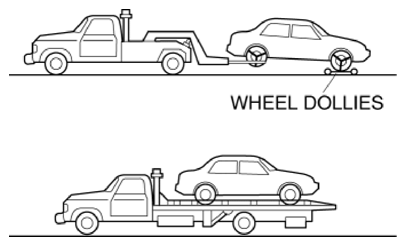

Fig 1: Towing 2WD Vehicle
Courtesy of MAZDA MOTORS CORP.
A towed 2WD vehicle should have its drive wheels (front wheels) off the ground. If excessive damage or other conditions prevent this, use wheel dollies.
When towing a 2WD vehicle with the rear wheels on the ground, release the parking brake.
A towed AWD vehicle must have all its wheels off the ground.

WARNING:

Always tow an AWD vehicle with all four wheels off the ground. Towing an AWD vehicle with either the front or rear wheels on the ground is dangerous as the drive train could be damaged, or the vehicle could trail away from the tow truck and cause an accident. If the drive train has been damaged, transport the vehicle on a flat bed truck.

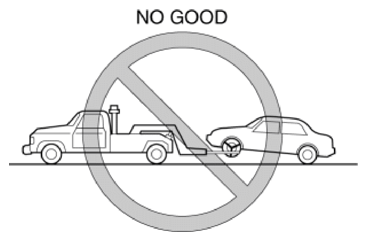

Fig 2: Caution For Towing AWD Vehicle

Courtesy of MAZDA MOTORS CORP.

CAUTION:

Do not tow the vehicle pointed backward with driving wheels on the ground. This may cause internal damage to the transaxle.

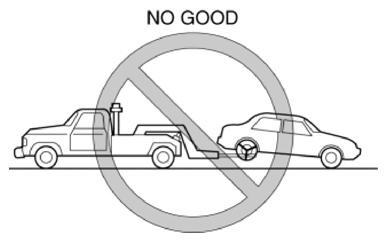

Fig 3: Caution For Towing Vehicle Pointed Backward
Courtesy of MAZDA MOTORS CORP.
Do not tow with sling-type equipment. This could damage the your vehicle. Use wheel-lift or flatbed equipment.

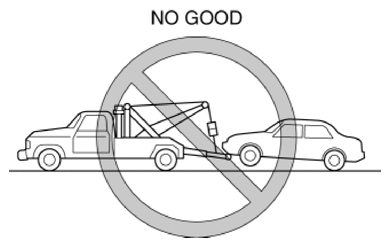

Fig 4: Caution For Towing Vehicle With Sling-Type Equipment
Courtesy of MAZDA MOTORS CORP.
