Setting method by operation of remote transmitter button

1. The following setting can be changed by operation of the remote transmitter button.

   M-MDS display	Function	Initial setting	Setting contents	Control unit
   Keyless Lock Beep Volume.	The keyless beeper volume can be adjusted.	Medium	Off/Low/Medium/High	Start stop unit

2. Change the setting for the keyless beeper volume referring to the following procedure:
   NOTE:

   • If any of the following conditions is met during procedure, the setting for changing the keyless beeper volume is finished.
     • The ignition is switched to ACC or ON (engine off or on).
     • The driver's door is closed.
     • The liftgate is open.
     • The remote transmitter operation is not performed for approx. 10 s.
     • The UNLOCK button on the remote transmitter is pressed.
     • A request switch is pressed.

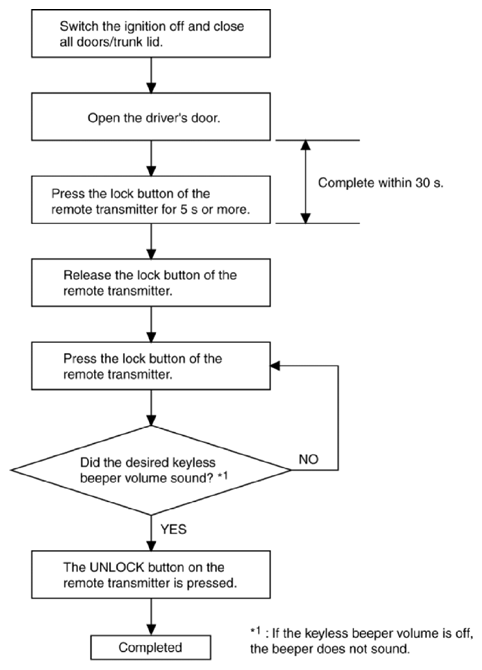

Fig 1: Remote Transmitter Button Setting Method Troubleshooting Chart

Courtesy of MAZDA MOTORS CORP.
