Lock/Unlock Operation Not Possible Using Remote Transmitter: Notes

Description	Door or fuel-filler lid cannot be locked/unlocked using remote transmitter Trunk lid does not open even if using remote transmitter

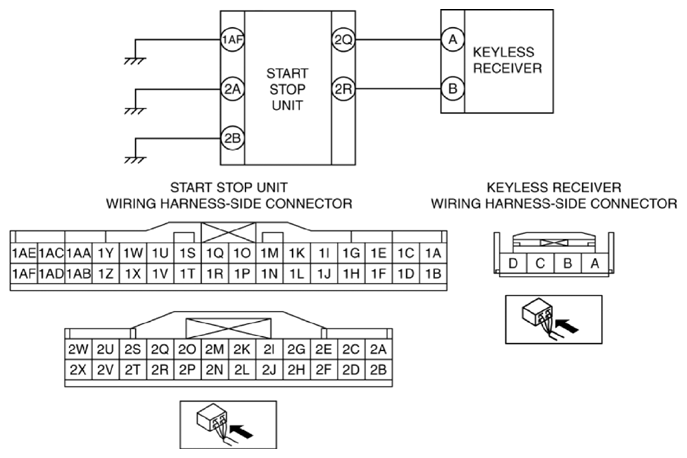

Possible Causes	Keyless receiver malfunction Remote transmitter malfunction Open circuit in wiring harness between the following terminals: Keyless receiver terminal A and start stop unit terminal 2Q Keyless receiver terminal B and start stop unit terminal 2R Start stop unit terminal 1AF and ground Start stop unit terminal 2A and ground Start stop unit terminal 2B and ground Connector poor contact or terminal damage Customer's mis-operation or misunderstanding Effect of non-standard equipment (any control unit with built-in micro computer such as radio set, mobile telephone, and TV)
