Cover Removal Note

  1. Carefully bend away the crimp of the cover using long nose pliers.

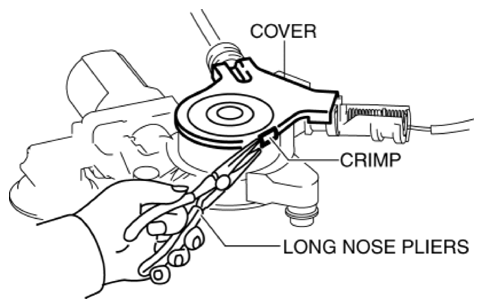

Fig 1: Bending Away Cover Crimp Using Long Nose Pliers
G10954119Courtesy of MAZDA MOTORS CORP.
