Pressure Control Valve Installation Note

  1. Install the pressure control valve as shown in the figure.

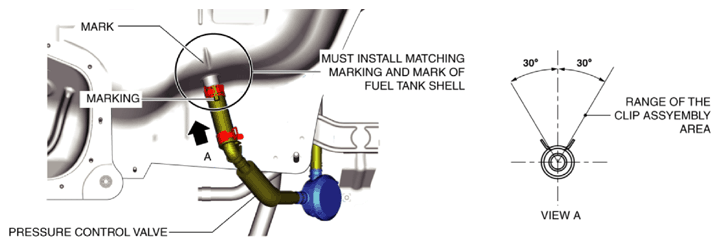

Fig 1: Identifying Pressure Control Valve And Fuel Tank Shell Marking
G10951725Courtesy of MAZDA MOTORS CORP.
