Front Abs Wheel-Speed Sensor Removal/Installation: Notes

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

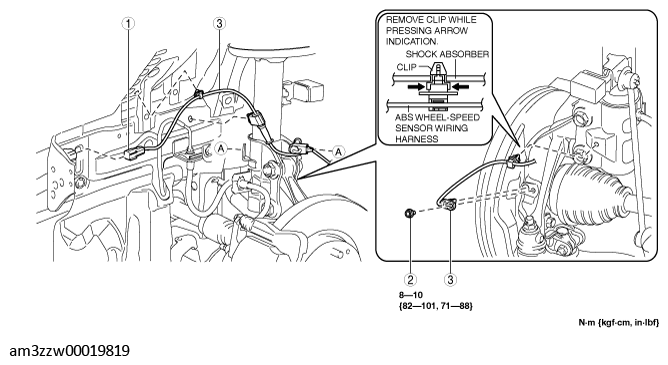

Fig 1: Front ABS Wheel-Speed Sensor Mounting Bolt With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector (See Connector Disconnection Note .)
2	Bolt
3	Front ABS wheel-speed sensor (See Connector Disconnection Note .)
