Rear Buckle Installation Note

  1. After installing the rear buckle, place it as shown in the figure.

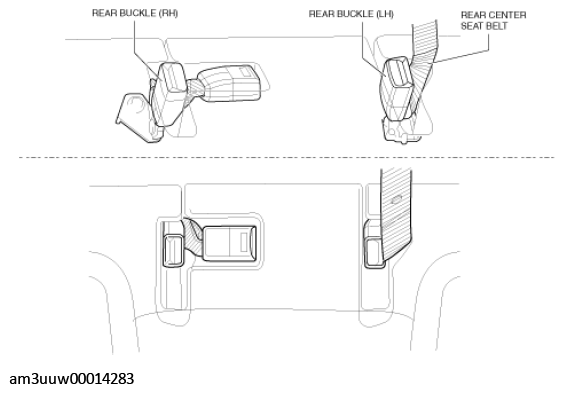

    Fig 1: Installing Rear Buckle
    G11539415Courtesy of MAZDA MOTORS CORP.
