Selector Lever Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Perform the following procedure to remove the selector lever knob.
    NOTE:
    • If the servicing is difficult, release the shift lock manually and shift the selector lever to the N position.

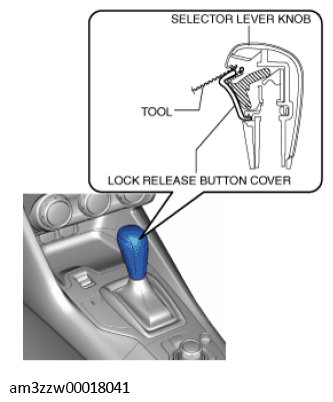

    1. Insert the tool (width: 6 mm {0.2 in} or less, thickness: 1 mm {0.04 in} or less) as shown in the figure.
      Fig 1: Inserting Tool And Releasing Lock Button Cover Lock
      G11539692Courtesy of MAZDA MOTORS CORP.

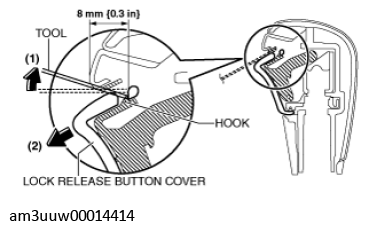

    2. Move the tool in the direction of arrow (1) in the figure and detach the hook. Move the lock release button cover in the direction of arrow (2) in the figure and remove it.
      Fig 2: Moving Lock Release Button Cover
      G11539693Courtesy of MAZDA MOTORS CORP.
    3. Remove the spring.
      Fig 3: Removing Spring
      G09786810Courtesy of MAZDA MOTORS CORP.

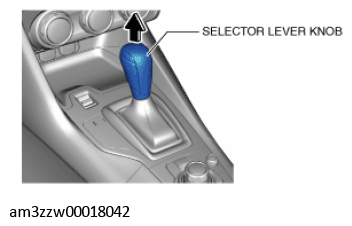

    4. Remove the selector lever knob.
    Fig 4: Removing Selector Lever Knob
    G11539695Courtesy of MAZDA MOTORS CORP.
  3. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL .)
    2. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    5. CD player (with CD player) (See CD PLAYER REMOVAL .)
    6. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    7. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    8. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    9. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  4. Disconnect the selector lever component connector.
    Fig 5: Selector Lever Component Connector
    G11539696Courtesy of MAZDA MOTORS CORP.
  5. Remove the selector cable (selector lever side). (See Selector Cable Removal/Installation .)
  6. Remove the nuts from the selector lever.
    Fig 6: Selector Lever Nuts
    G11539697Courtesy of MAZDA MOTORS CORP.
  7. Remove the selector lever.
  8. Install the selector lever.
  9. Install the nuts to the selector lever.
    Fig 7: Selector Lever Nuts
    G11539697Courtesy of MAZDA MOTORS CORP.
  10. Install the selector cable (selector lever side). (See Selector Cable Removal/Installation .)
  11. Connect the selector lever component connector.
    Fig 8: Selector Lever Component Connector
    G11539696Courtesy of MAZDA MOTORS CORP.
  12. Install the following parts:
    1. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    5. CD player (with CD player) (See CD PLAYER INSTALLATION .)
    6. Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    8. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    9. Upper panel (See UPPER PANEL INSTALLATION .)
  13. Perform the following procedure to install the selector lever knob.
    1. Install the spring to the selector lever knob.
      CAUTION:
      • Install the spring so that it is stopped by the stopper.
      Fig 9: Installing Spring To Selector Lever Knob
      G09786237Courtesy of MAZDA MOTORS CORP.
    2. Install the selector lever knob to the selector lever component.

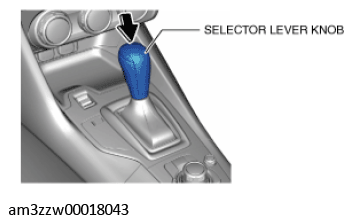

      Fig 10: Installing Selector Lever Knob To Selector Lever Component
      G11539701Courtesy of MAZDA MOTORS CORP.
    3. Install the lock release button cover so that it engages with the hook of the selector lever knob.
    Fig 11: Installing Lock Release Button Cover
    G09786239Courtesy of MAZDA MOTORS CORP.
  14. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
