With Bluetooth System

  1. Switch the ignition OFF (LOCK).
  2. Disconnect the negative battery cable and wait for 1 min or more.
  3. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
  4. Disconnect the clock spring connector.

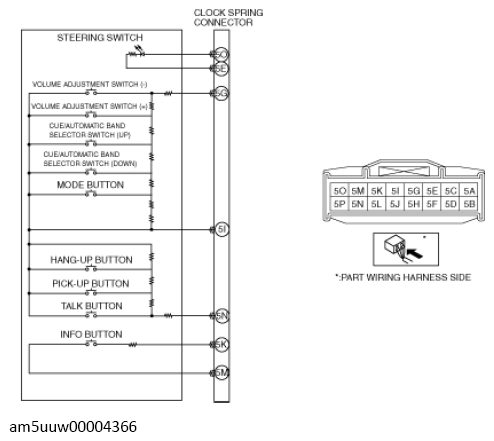

  5. Verify the resistance between the clock spring connector terminals.
    G13728650Courtesy of MAZDA MOTORS CORP.

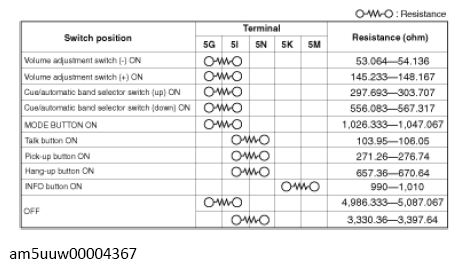

    • If not within the specification, replace the steering switch.
      G13728651Courtesy of MAZDA MOTORS CORP.

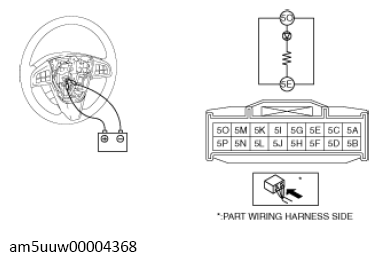

  6. Apply battery positive voltage to clock spring connector terminal 5O and connect terminal 5E to ground.
    G13728652Courtesy of MAZDA MOTORS CORP.
  7. Verify that the LED illuminates.
    • If the LED does not illuminate, replace the steering switch.
