Tweeter Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)

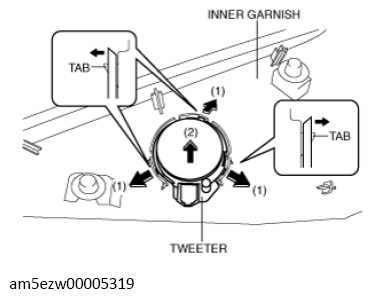

  3. Remove the tweeter in the direction of the arrow shown in the figure.
    G13728663Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
