Liftgate Recess Removal/Installation

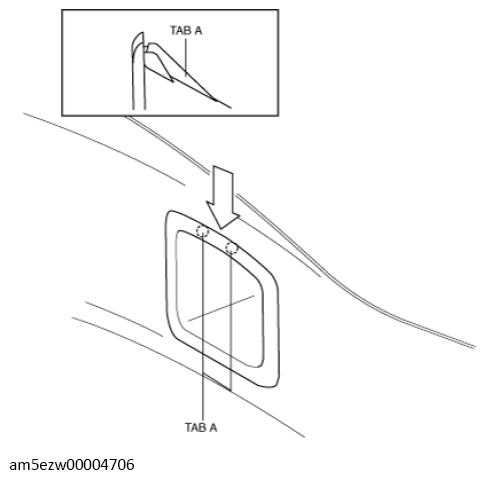

  1. Insert a fastener remover in the position indicated by the arrow in the figure and detach tabs A.
    G13728384Courtesy of MAZDA MOTORS CORP.
  2. Remove the liftgate recess in the direction of the arrow shown in the figure detaching the tabs B.
    G13728385Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
