Third-Row Seat Back Component Removal/Installation

Remove the third-row seat. (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
Remove the covers, then remove the bolts.

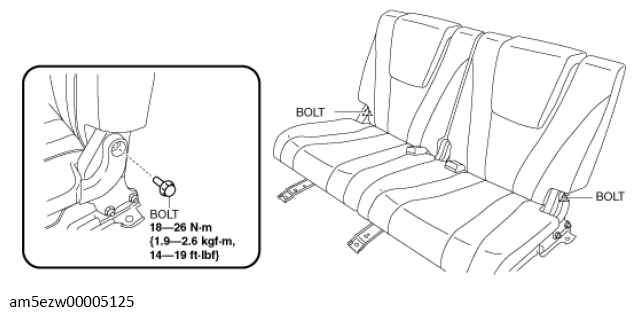

Fig 1: Third-Row Seat Bolts With Torque Specification (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

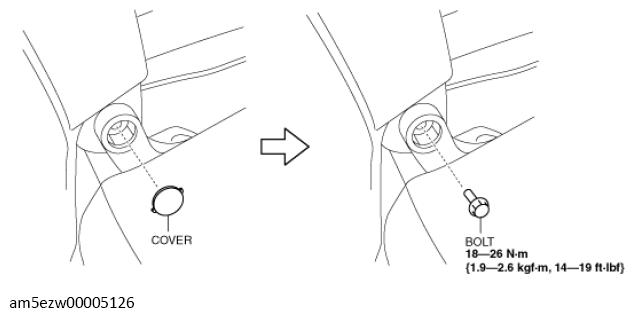

Fig 2: Third-Row Seat Bolts With Torque Specification (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Remove the screws and the nut, then remove the third-row seat back component.

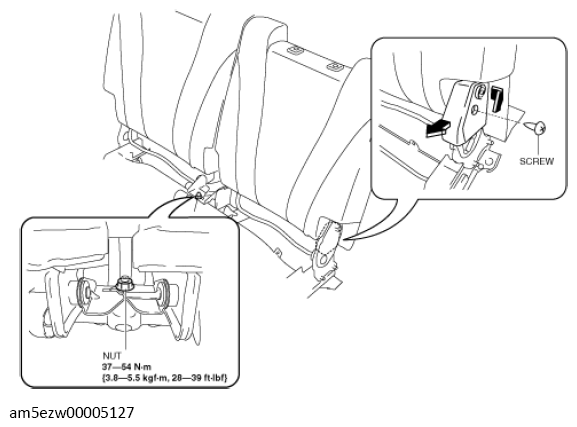

Fig 3: Third-Row Seat Back Component, Screws And Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
