Symptom Troubleshooting - Power Window System
>>
Power Window System Wiring Diagram
>>
Power Window Main Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

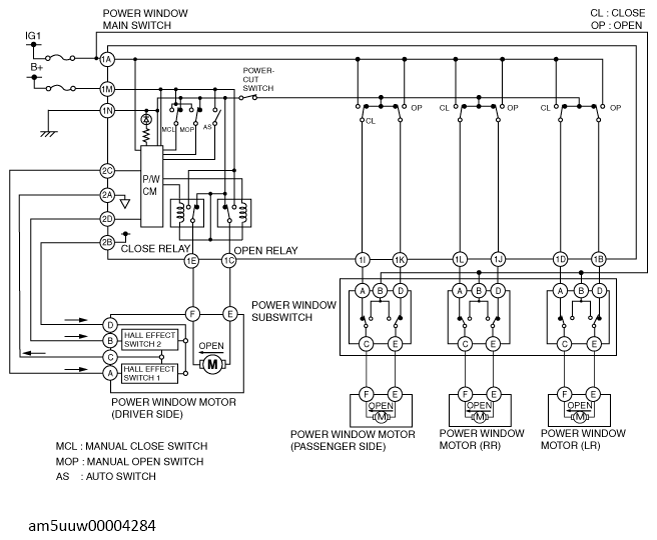

Power Window Main Switch
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
