DSC Off Switch Inspection

  1. Remove the DSC OFF switch. (See DSC OFF SWITCH REMOVAL/INSTALLATION .)

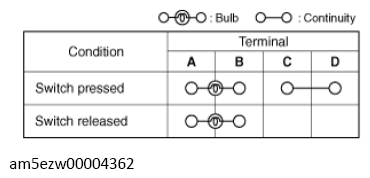

  2. Verify that the continuity is as indicated in the table.

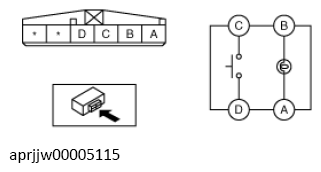

G13727248Courtesy of MAZDA MOTORS CORP.
G13727249Courtesy of MAZDA MOTORS CORP.
