Front Abs Wheel-Speed Sensor Removal/Installation: Notes

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, verify that there is no twisting in the front ABS

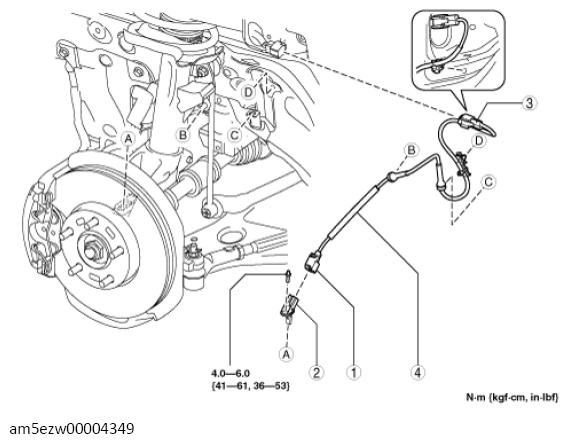

Fig 1: Front ABS Wheel-Speed Sensor Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Connector
2	Front ABS wheel-speed sensor
3	Connector (See CONNECTOR REMOVAL NOTE .)
4	Front ABS wheel-speed sensor wiring harness
