DTC P2122-00: App Sensor No. 1 Circuit Low Input: Notes

DTC P2122:00 DETECTION CONDITION AND POSSIBLE CAUSE

DTC P2122:00	APP sensor No. 1 circuit low input
DETECTION CONDITION	The PCM monitors the input voltage from APP sensor No. 1 when the engine is running. If the input voltage is less than 0.2 V, the PCM determines that the APP sensor No. 1 circuit input voltage is low. Diagnostic support note This is a continuous monitor (CCM). The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Regulates the upper limit of the APP sensor output.

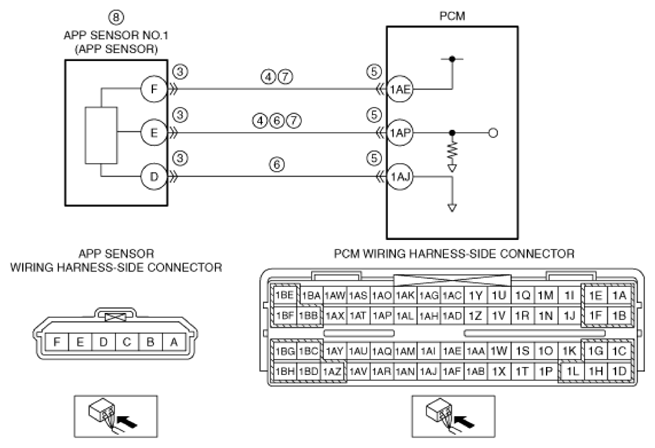

POSSIBLE CAUSE	APP sensor connector or terminals malfunction Short to ground in wiring harness between the following terminals: APP sensor terminal F-PCM terminal 1AE APP sensor terminal E-PCM terminal 1AP PCM connector or terminals malfunction APP sensor No. 1 signal circuit and ground circuit are shorted to each other Open circuit in wiring harness between the following terminals: APP sensor terminal F-PCM terminal 1AE APP sensor terminal E-PCM terminal 1AP APP sensor No. 1 malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
