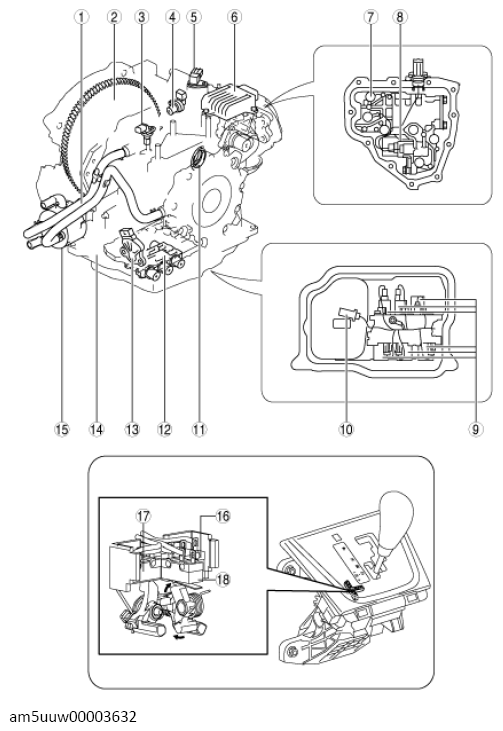

| 1 |
Oil pressure switch
(See OIL PRESSURE SWITCH INSPECTION .)
(See OIL PRESSURE SWITCH REMOVAL/INSTALLATION .) |
| 2 |
Drive plate
(See DRIVE PLATE REMOVAL/INSTALLATION .) |
| 3 |
Input/turbine speed sensor
(See INPUT/TURBINE SPEED SENSOR INSPECTION .)
(See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION .) |
| 4 |
VSS
(See VEHICLE SPEED SENSOR (VSS) INSPECTION .)
(See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION .) |
| 5 |
Intermediate sensor
(See INTERMEDIATE SENSOR INSPECTION .)
(See INTERMEDIATE SENSOR REMOVAL/INSTALLATION .) |
| 6 |
TCM
(See TCM INSPECTION .)
(See TCM REMOVAL/INSTALLATION .) |
| 7 |
Secondary control valve body
(See CONTROL VALVE BODY REMOVAL/INSTALLATION .) |
| 8 |
Pressure control solenoid B
Shift solenoid F
(See SOLENOID VALVE INSPECTION .)
(See SOLENOID VALVE REMOVAL/INSTALLATION .) |
| 9 |
Pressure control solenoid A
Shift solenoid A
Shift solenoid B
Shift solenoid C
Shift solenoid D
Shift solenoid E
(See SOLENOID VALVE INSPECTION .)
(See SOLENOID VALVE REMOVAL/INSTALLATION .) |
| 10 |
TFT sensor
(See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION .)
(See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION .) |
| 11 |
Oil seal
(See OIL SEAL REPLACEMENT .) |
| 12 |
Primary control valve body
(See CONTROL VALVE BODY REMOVAL/INSTALLATION .) |
| 13 |
TR switch
(See TRANSAXLE RANGE (TR) SWITCH INSPECTION .)
(See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT .)
(See TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION .) |
| 14 |
Automatic transaxle
(See MECHANICAL SYSTEM TEST .)
(See ROAD TEST .)
(See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION .)
(See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .) |
| 15 |
Oil cooler
(See OIL COOLER REMOVAL/INSTALLATION .)
(See OIL COOLER FLUSHING .) |
| 16 |
Down switch
(See DOWN SWITCH INSPECTION .)
(See DOWN SWITCH REMOVAL/INSTALLATION .) |
| 17 |
Up switch
(See UP SWITCH INSPECTION .)
(See UP SWITCH REMOVAL/INSTALLATION .) |
| 18 |
M position switch
(See M POSITION SWITCH INSPECTION .)
(See M POSITION SWITCH REMOVAL/INSTALLATION .) |
