Intermediate sensor

Courtesy of MAZDA MOTORS CORP.

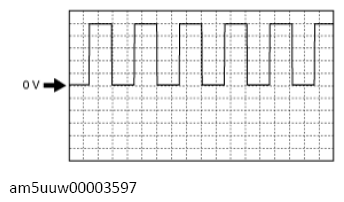

Terminal: AC (+)-GND (-)
Oscilloscope setting: 1 V/DIV (Y), 200 μs/DIV (X), DC range
Measurement condition: When all of the following conditions are met:
- Vehicle speed: 30 km/h {19 mph}
- 3GR
