Transaxle Range (Tr) Switch Removal/Installation: Notes
CAUTION:
- Do not allow foreign material or water to penetrate the connector. Otherwise, it could cause poor contact and corrosion.
- Apply the parking brake firmly, and set the wheel blocks for both the front and rear wheels.
- Shift the selector lever to the N position.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Disconnect the negative battery cable.
- Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.5] .)

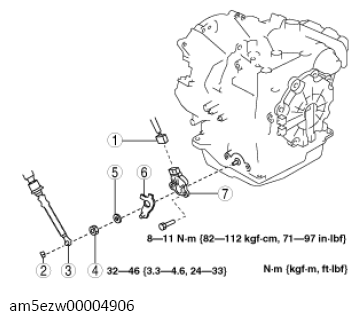

- Remove in the order shown in the figure.
- Install in the reverse order of removal.
- Inspect the TR switch. (See TRANSAXLE RANGE (TR) SWITCH INSPECTION .)PART DESCRIPTION
1 Connector 2 Clip 3 Selector cable 4 Manual shaft nut
(See MANUAL SHAFT NUT REMOVAL NOTE .)
(See MANUAL SHAFT NUT INSTALLATION NOTE .)5 Washer 6 Manual shaft lever 7 TR switch
(See TR SWITCH INSTALLATION NOTE .)
