DTC P0707-00: Tr Switch Circuit Low Input: Notes

DTC P0707:00 (FS5A-EL) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0707:00	TR switch circuit low input
DETECTION CONDITION	Under the following condition, TR switch voltage is 0.49 V or less for 5 s Battery positive voltage is 9 V or more Diagnostic support note The check engine light illuminates if the TCM detects the above malfunction condition during the first drive cycle. The automatic transaxle warning light illuminates if the TCM detects the above malfunction condition during the first drive cycle. PENDING CODE is available. FREEZE FRAME DATA is available. The DTC is stored in the TCM memory.
FAIL-SAFE FUNCTION	Inhibits 1GR, 4GR and 5GR Inhibits feedback control

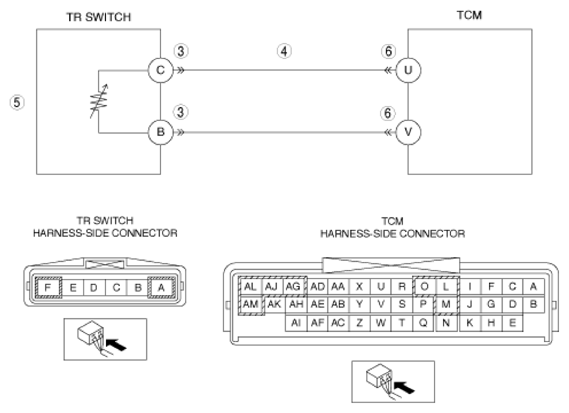

POSSIBLE CAUSE	TR switch connector or terminal malfunction Short to GND in wiring harness between TR switch terminal C and TCM terminal U TR switch malfunction TCM connector or terminal malfunction TCM malfunction
Courtesy of MAZDA MOTORS CORP.
