Two-step Deployment Control System
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable and wait for 1 min or more.
- Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
- Disconnect the clock spring connector (part wiring harness-side).

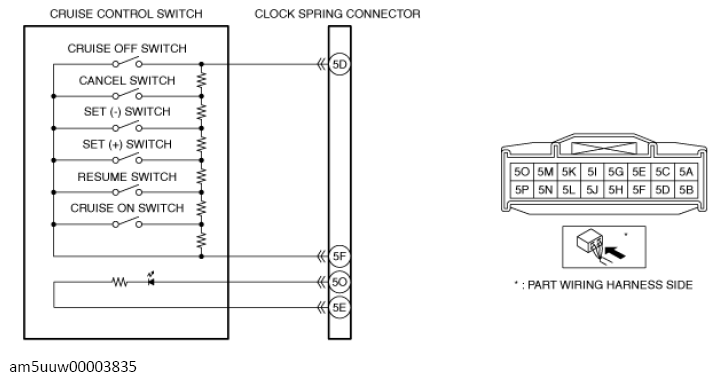

- Inspect for resistance and continuity between clock spring connector terminals 5D and 5F (part wiring harness-side) using a tester.
- If not as specified, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)
RESISTANCE SPECIFICATIONSwitch condition Resistance (ohm) Cruise OFF switch held at on Continuity CANCEL switch held at on 118.8-121.2 SET (-) switch held at on 297.0-303.0 SET (+) switch held at on 594.0-606.0 RESUME switch held at on 1, 098.9-1, 121.1 Cruise ON switch held at on 2, 088.9-2, 131.1 Neutral 4, 266.9-4, 353.1 - Apply battery positive voltage to clock spring terminal 5O (part wiring harness-side) and terminal 5E (part wiring harness-side) to ground.
- Verify that the LED illuminates.
- If the LED does not illuminate, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)
