On-Vehicle Inspection

  1. Disconnect the input/turbine speed sensor connector.
    1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
    2. Disconnect the negative battery cable.
    3. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.5] .)

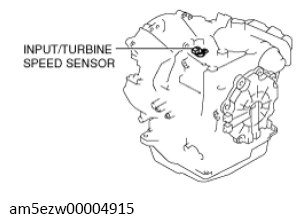

    4. Disconnect the input/turbine speed sensor connector.
      G13727435Courtesy of MAZDA MOTORS CORP.
  2. Measure resistance between input/turbine speed sensor terminals A and B.
    G13727436Courtesy of MAZDA MOTORS CORP.

    Input/turbine speed sensor resistance

    250-600 ohms
