DTC P0713-00: TFT Sensor Circuit High Input: Notes

DTC P0713:00 (FS5A-EL) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0713:00	TFT sensor circuit high input
DETECTION CONDITION	Under the following conditions, TFT sensor voltage is 4.66 V or more for 5 s Battery positive voltage is 9 V or more Intake air temperature is -31°C {-23°F} or more IAT sensor related DTC is not recorded Diagnostic support note The check engine light illuminates if the TCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the TCM. The automatic transaxle warning light illuminates if the TCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the TCM. PENDING CODE is available. FREEZE FRAME DATA is available. The DTC is stored in the TCM memory.
FAIL-SAFE FUNCTION	Inhibits TCC control Inhibits feedback control

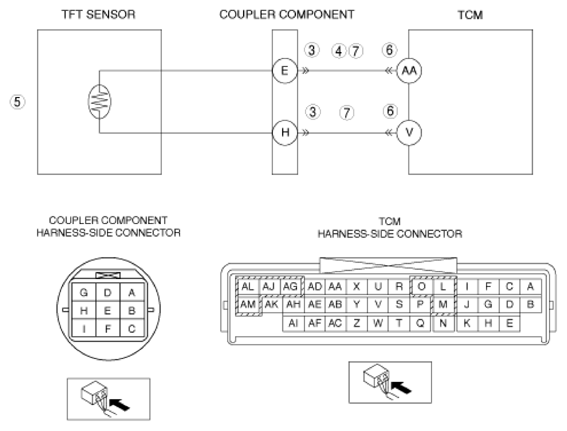

POSSIBLE CAUSE	Coupler component connector or terminal malfunction Short to power supply in wiring harness between TFT sensor and TCM terminal AA TFT sensor malfunction TCM connector or terminal malfunction Open circuit in wiring harness between TFT sensor and TCM terminal AA Open circuit in wiring harness between TFT sensor and TCM terminal V TCM malfunction
Courtesy of MAZDA MOTORS CORP.
