Brake Pipe Installation Note

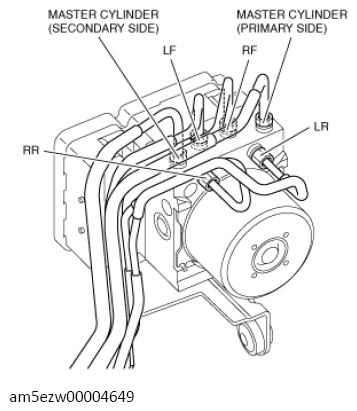

  1. Align the marks made before removal and install the brake pipe into the DSC HU/CM referring to the figure.
G13727245Courtesy of MAZDA MOTORS CORP.
