Control Cable Removal/Installation

Disconnect the negative battery cable.
Remove the battery component. (ex: battery, battery tray) (See BATTERY REMOVAL/INSTALLATION .)
Remove the fastener retaining insulator (No. 5) and set insulator (No. 5) aside. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
Remove the center console. (See CENTER CONSOLE REMOVAL/INSTALLATION .)

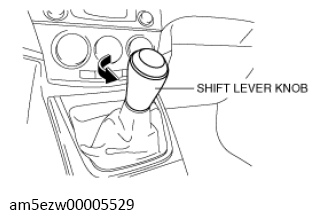

Remove the shift lever knob.

Courtesy of MAZDA MOTORS CORP.
Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
Remove the rear blower unit. (See REAR BLOWER UNIT REMOVAL/INSTALLATION .)
Disconnect the drain hose connected to A/C unit.

Courtesy of MAZDA MOTORS CORP.

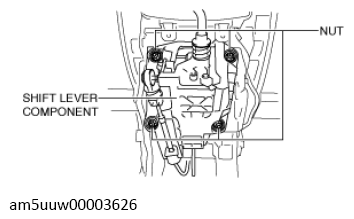

Remove the shift lever component installation nuts.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

16-22 N.m {1.7-2.2 kgf.m, 12-16 ft.lbf}

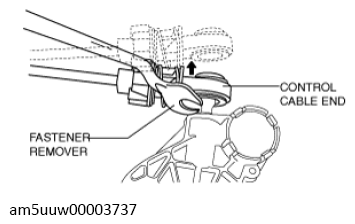

Remove the control cable end using a fastener remover.

Courtesy of MAZDA MOTORS CORP.

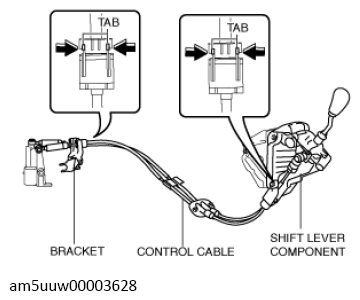

Press the tabs on the control cable as shown in the figure and disconnect the control cable from the shift lever component.

Courtesy of MAZDA MOTORS CORP.
Press the tabs on the control cable and disconnect the control cable from the bracket.

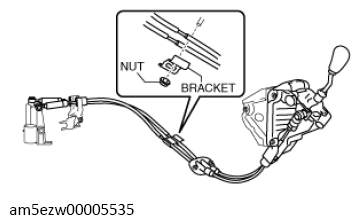

Remove the bracket as shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}

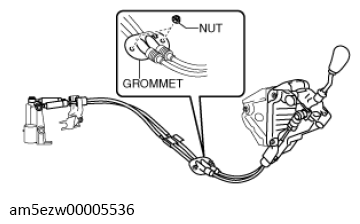

Remove the fastening nuts for the grommet.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

6.9-9.8 N.m {71-99 kgf.cm, 62-86 in.lbf}

Remove the control cable using two people.

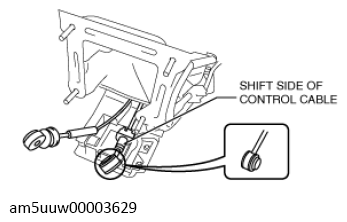

While pressing the shift side of the control cable from the cabin, pull it out to the engine compartment.

Courtesy of MAZDA MOTORS CORP.

While pressing the select side of the control cable from the cabin, pull it out to the engine compartment.

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
