Shift Lever Component Removal/Installation

Disconnect the negative battery cable.
Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
Remove the center console. (See CENTER CONSOLE REMOVAL/INSTALLATION .)
Remove the shift lever knob.

Courtesy of MAZDA MOTORS CORP.
Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
Remove the rear blower unit. (See REAR BLOWER UNIT REMOVAL/INSTALLATION .)

Remove the shift lever component.

Remove the shift lever component installation nuts.

G13727373

Courtesy of MAZDA MOTORS CORP.

Tightening torque

16-22 N.m {1.7-2.2 kgf.m, 12-16 ft.lbf}

Remove the control cable end using a fastener remover.

G13727374

Courtesy of MAZDA MOTORS CORP.

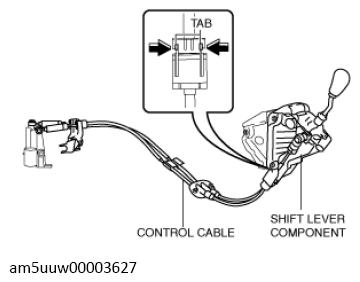

Press the tabs on the control cable as shown in the figure and remove the shift lever component from the control cable.

G13727375

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
