Engine Front Cover Removal Note

  1. Remove the nut shown in the figure and set the cooler hose (LO) aside.

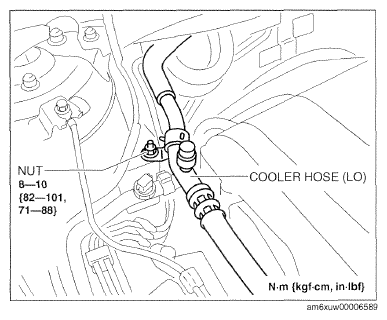

    Fig 1: Locating Cooler Hose (LO) Nut
    G09785096Courtesy of MAZDA MOTORS CORP.
  2. Remove the insulator shown in the figure.
    Fig 2: Removing Insulator From Engine
    G09785097Courtesy of MAZDA MOTORS CORP.
  3. Set the ground cable and wiring harness bracket shown in the figure aside.
    Fig 3: Removing Wiring Harness Bracket
    G09785098Courtesy of MAZDA MOTORS CORP.
  4. Remove the engine front cover installation bolts.
  5. Using a screwdriver wrapped in a cloth, peel the sealant away a little at a time, and remove the engine front cover.
CAUTION:
  • Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.
  • Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.
Fig 4: Peeling Sealant Using Screwdriver Wrapped In Cloth
G09785099Courtesy of MAZDA MOTORS CORP.
Fig 5: Removing Engine Front Cover
G11429951Courtesy of MAZDA MOTORS CORP.
