Power System Location Index
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

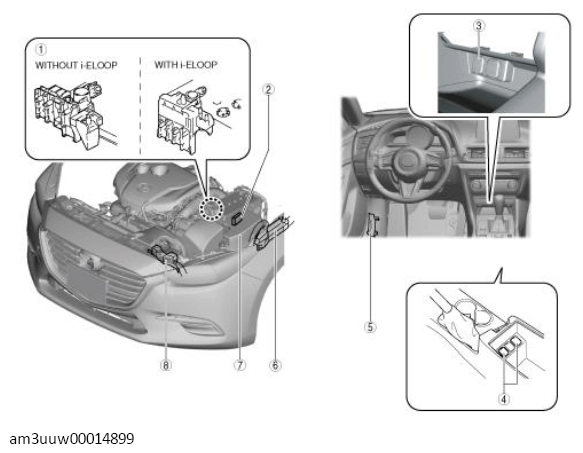

COMPONENT DESCRIPTION
| 1 | Main fuse (See MAIN FUSE REMOVAL/INSTALLATION .) |
| 2 | Multiplex slow blow fuse (See MULTIPLEX SLOW BLOW FUSE REMOVAL/INSTALLATION .) |
| 3 | Front accessory socket (See FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION .) (See FRONT ACCESSORY SOCKET INSPECTION .) |
| 4 | Center accessory socket (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .) (See CENTER ACCESSORY SOCKET INSPECTION .) |
| 5 | Fuse block (See FUSE BLOCK REMOVAL/INSTALLATION .) |
| 6 | Front wiring harness protector No. 2 (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION .) |
| 7 | Relay and fuse block (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .) (See FUSE SERVICE CAUTIONS .) (See RELAY LOCATION .) (See RELAY INSPECTION .) |
| 8 | Front wiring harness protector No. 1 (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION .) |
