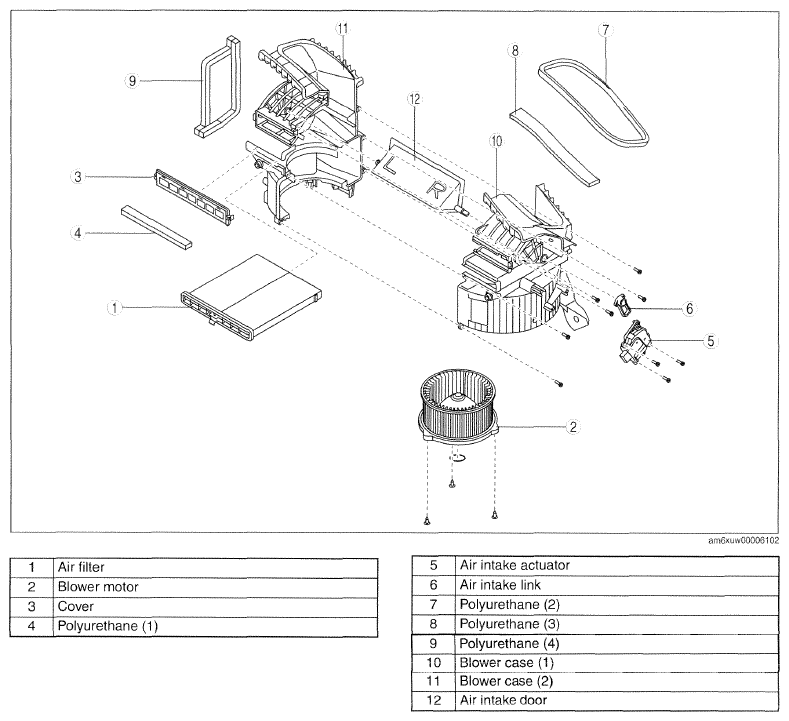

Blower Unit Disassembly/Assembly
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.
- Disassemble in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
