DTC B10A4:87 [Adaptive Front Lighting System (AFS) Control Module]: Notes
DTC B10A4:87 (ADAPTIVE FRONT LIGHTING SYSTEM CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Communication error with swivel actuator (RH) |
| Detection condition |
- The AFS control module detected communication error with the swivel actuator (RH) for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
- The swivel actuator (RH) is stopped at the position when the malfunction is determined.
- The swivel actuator (LH) is moved to the center, or the swivel actuators (LH) and (RH) are moved to the center.
- Control of the headlight auto leveling system is continued with the headlight leveling actuator positioned -0.6° from where the malfunction is determined.
|
| Possible cause |
- Front combination light (RH) connector or terminal malfunction
- AFS control module connector or terminal malfunction

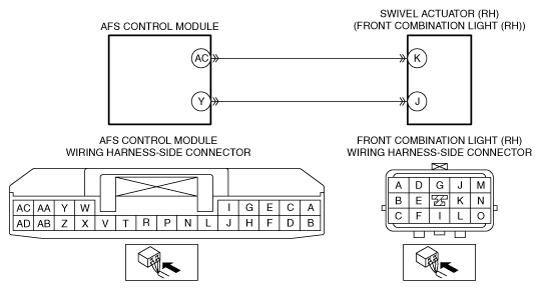

- Short to ground in wiring harness between the following terminals:
- AFS control module terminal AC and front combination light (RH) terminal K
- AFS control module terminal Y and front combination light (RH) terminal J
- Short to power supply in wiring harness between the following terminals:
- AFS control module terminal AC and front combination light (RH) terminal K
- AFS control module terminal Y and front combination light (RH) terminal J
- Open circuit in wiring harness between the following terminals:
- AFS control module terminal AC and front combination light (RH) terminal K
- AFS control module terminal Y and front combination light (RH) terminal J
- Swivel actuator (RH) malfunction
- AFS control module malfunction
|
|
|
