Front Accessory Socket Inspection

Remove the front accessory socket. (See FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION .)
Connect the tester probe to the position shown in the figure and verify that there is continuity.

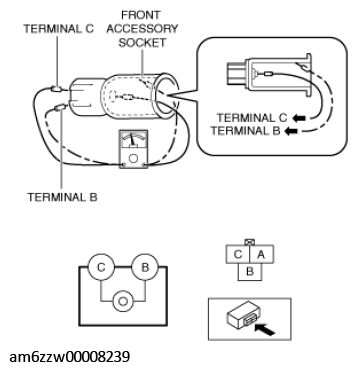

Fig 1: Connecting Tester Probe To Position
Courtesy of MAZDA MOTORS CORP.
- If it cannot be verified, replace the front accessory socket. (See FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION .)
