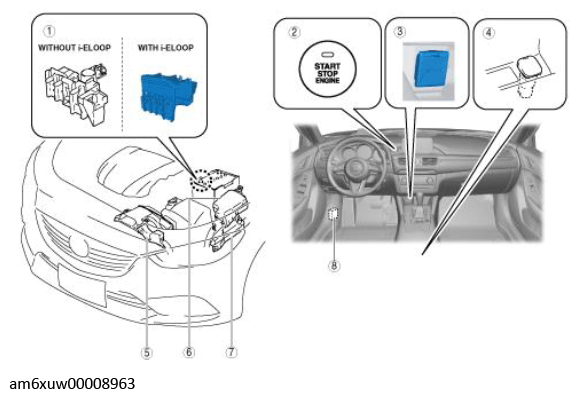

Power System Location Index
COMPONENT DESCRIPTION
| 1 | Main fuse (See MAIN FUSE REMOVAL/INSTALLATION .) |
| 2 | Push button start (See PUSH BUTTON START REMOVAL/INSTALLATION .) (See PUSH BUTTON START INSPECTION .) (See FORCED IGNITION ON .) |
| 3 | Front accessory socket (See FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION .) (See FRONT ACCESSORY SOCKET INSPECTION .) |
| 4 | Center accessory socket (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .) (See CENTER ACCESSORY SOCKET INSPECTION .) |
| 5 | Front wiring harness protector No.l (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION .) |
| 6 | Relay and fuse block (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .) (See RELAY AND FUSE BLOCK DISASSEMBLY/ASSEMBLY .) (See RELAY AND FUSE BLOCK MIDDLE COVER DISASSEMBLY/ASSEMBLY .) (See FUSE SERVICE CAUTIONS .) (See RELAY LOCATION .) (See RELAY INSPECTION .) |
| 7 | Front wiring harness protector No. 2 (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION .) |
| 8 | Fuse block (See FUSE BLOCK REMOVAL/INSTALLATION .) |
