Push Button Start Inspection

Remove the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)
Verify that the continuity between the push button start terminals is as indicated in the table.

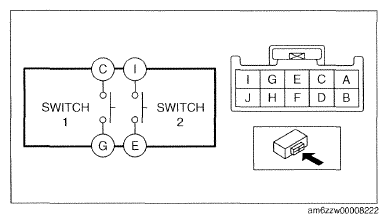

Fig 1: Checking Continuity Between Push Button Start Terminals
Courtesy of MAZDA MOTORS CORP.

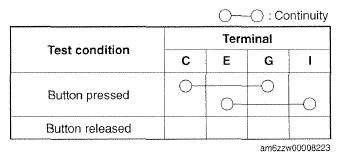

Fig 2: Push Button Start Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
- If the continuity can be verified as indicated in the table, go to the next step.
- If not as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)
Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.

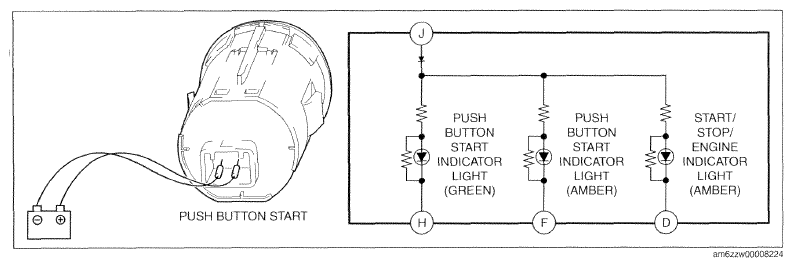

Fig 3: Connecting Ground To Push Button Start Terminals

Courtesy of MAZDA MOTORS CORP.

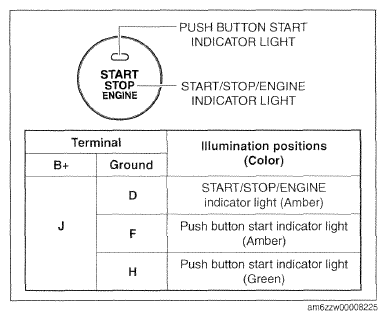

Fig 4: Push Button Start Terminals Continuity Chart

Courtesy of MAZDA MOTORS CORP.

If the LED does not illuminate as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)
