Relay And Fuse Block Middle Cover Disassembly/Assembly

Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

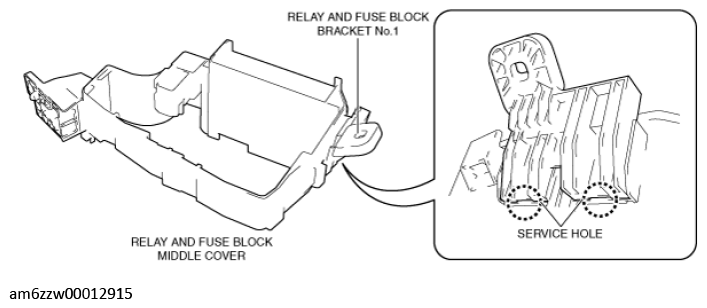

Fig 1: Relay And Fuse Block Middle Cover Service Hole Position - Bracket No. 1
Courtesy of MAZDA MOTORS CORP.

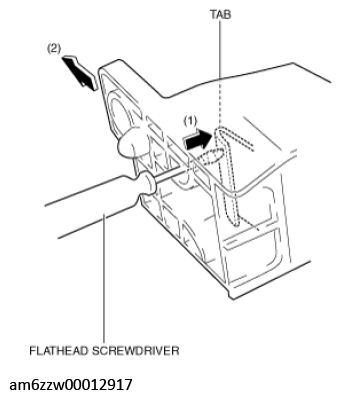

Move the flathead screwdriver in the direction of arrow (1) shown in the figure, and pull out the relay and fuse block bracket No. 1 in the direction of arrow (2) shown in the figure to detach the relay and fuse block middle cover tab from the relay and fuse block bracket No. 1.

Fig 2: Moving Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Detach all the relay and fuse block middle cover tabs from the relay and fuse block bracket No. 1 and remove the relay and fuse block bracket No. 1 from the relay and fuse block middle cover.
Insert a flathead screwdriver into the service hole in the position shown in the figure.

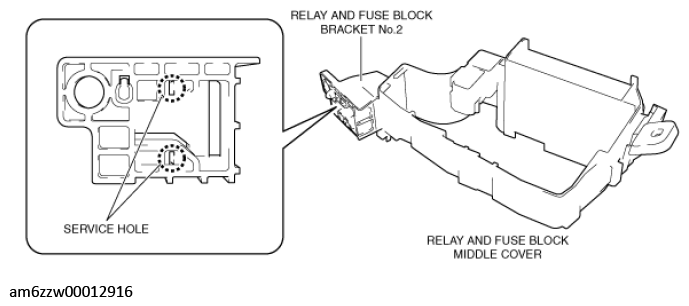

Fig 3: Relay And Fuse Block Middle Cover Service Hole Position - Bracket No. 2
Courtesy of MAZDA MOTORS CORP.
Move the flathead screwdriver in the direction of arrow (1) shown in the figure, and pull out the relay and fuse block bracket No. 2 in the direction of arrow (2) shown in the figure to detach the relay and fuse block middle cover tab from the relay and fuse block bracket No. 2.

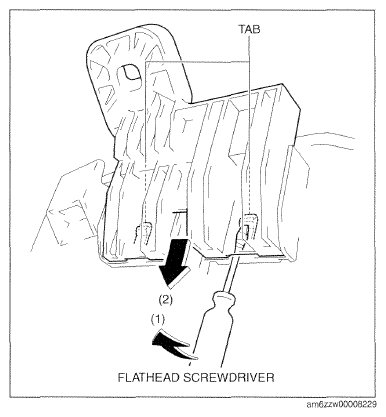

Fig 4: Detaching Relay And Fuse Block Middle Cover Tab From Relay And Fuse Block Bracket No. 2
Courtesy of MAZDA MOTORS CORP.
Remove the relay and fuse block bracket No. 2.
Assemble in the reverse order of disassembly.
