Radiator Removal Note

To prevent damage to the radiator core, protect it by covering the radiator surface with cardboard.
Lift the radiator and remove it from the radiator installation holes on the shroud panel.
Move the radiator and condenser to the engine side.
Remove the two bolts (lower side) which secure the condenser to the radiator.

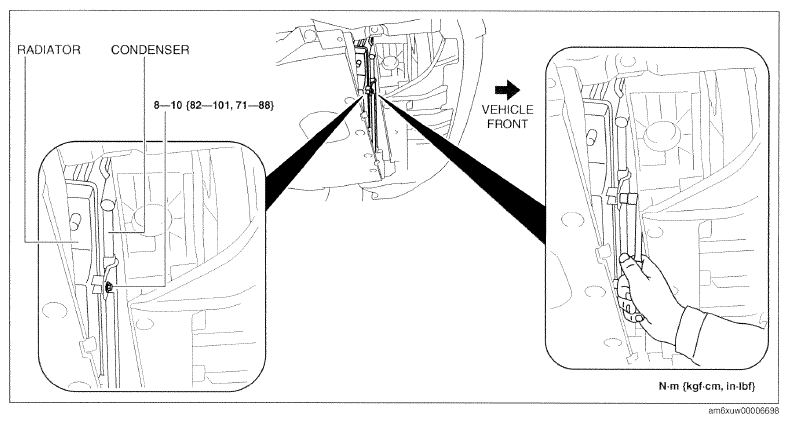

Fig 1: Removing Two Bolts-Lower Side Securing Condenser To Radiator
Courtesy of MAZDA MOTORS CORP.
Remove the two bolts (upper side) which secure the condenser to the radiator.

Fig 2: Removing Two Bolts-Upper Side Securing Condenser To Radiator
Courtesy of MAZDA MOTORS CORP.
Remove the radiator from above the engine compartment.

Fig 3: Removing Radiator From Engine Compartment
Courtesy of MAZDA MOTORS CORP.
