Oil Pump Installation Note

1. Install the oil pump using the following procedure:

1. Temporarily tighten the three bolts shown in the figure.

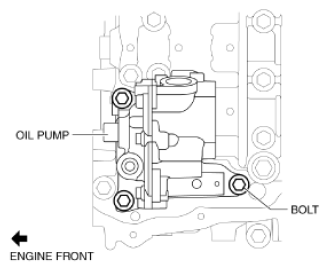

   Fig 1: Oil Pump Bolts Location

   Courtesy of MAZDA MOTORS CORP.
2. Tighten the two bolts shown in the figure to the specified torque.

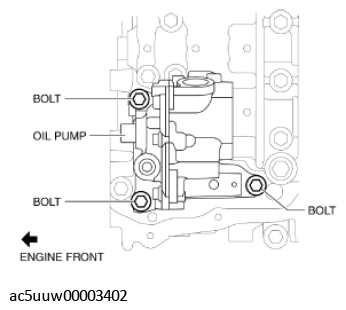

   Fig 2: Oil Pump Bolts Location

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • The tightening order for the two bolts is optional.

   Tightening torque

   20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}

3. Finally, tighten the bolt shown in the figure to the specified torque.

Fig 3: Oil Pump Bolts Location

Courtesy of MAZDA MOTORS CORP.

Tightening torque

20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
